Description

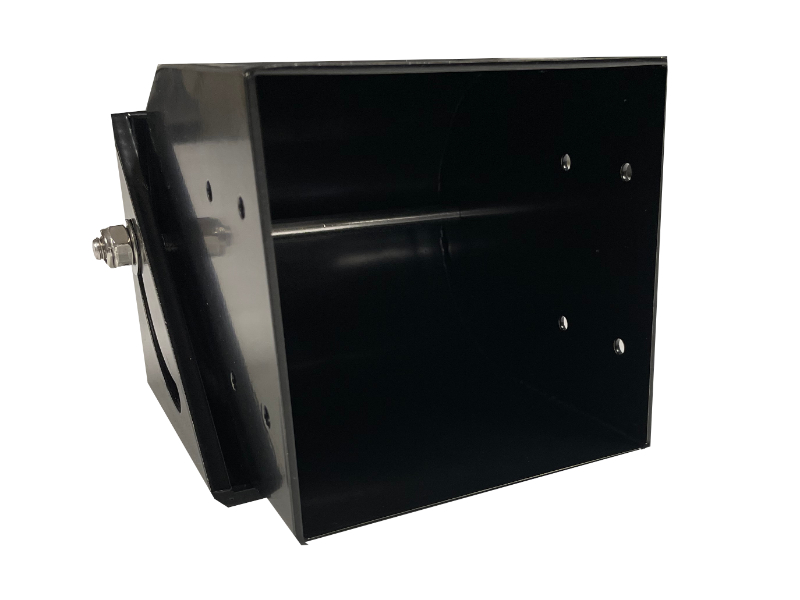

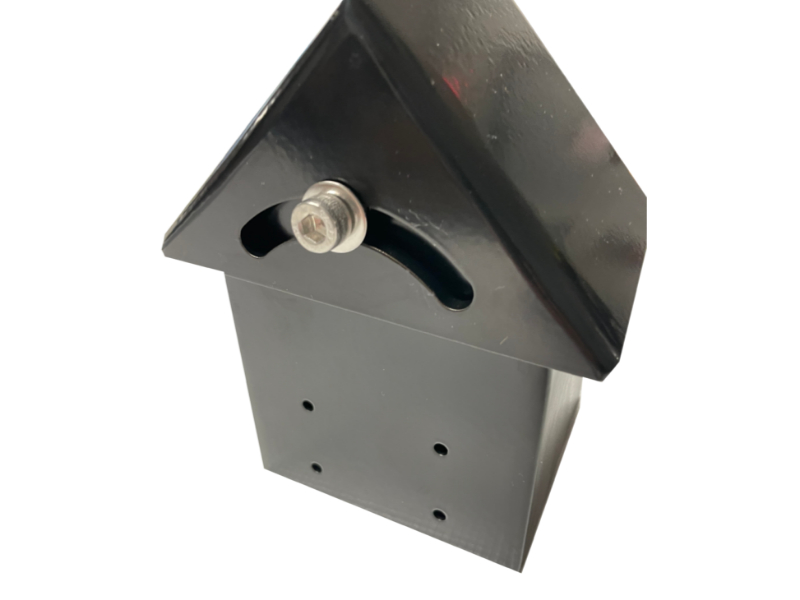

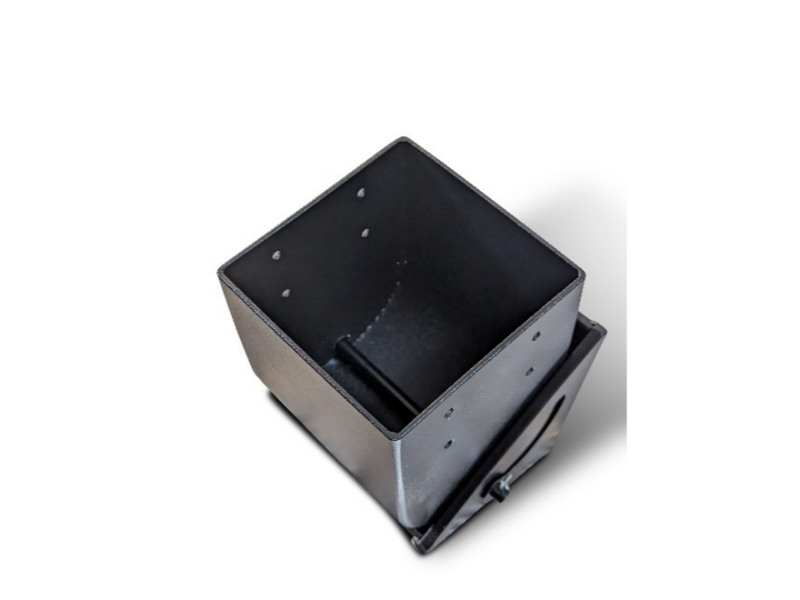

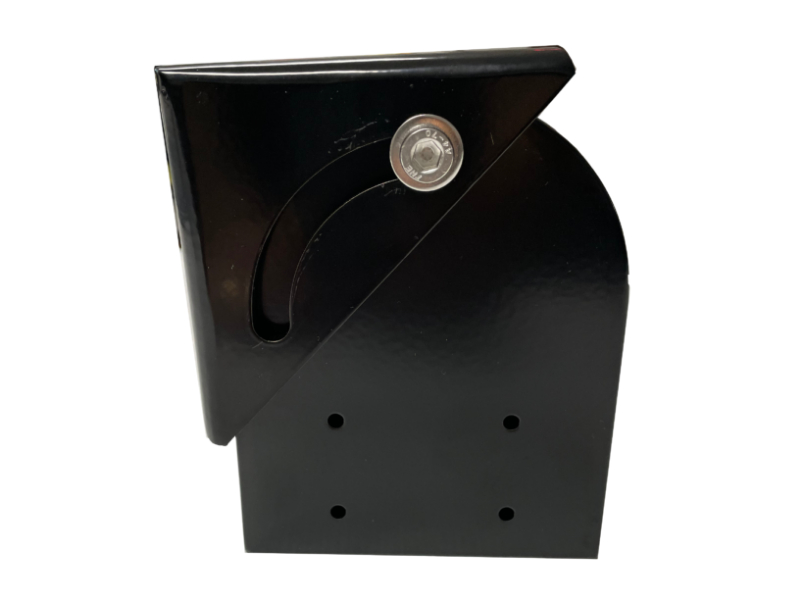

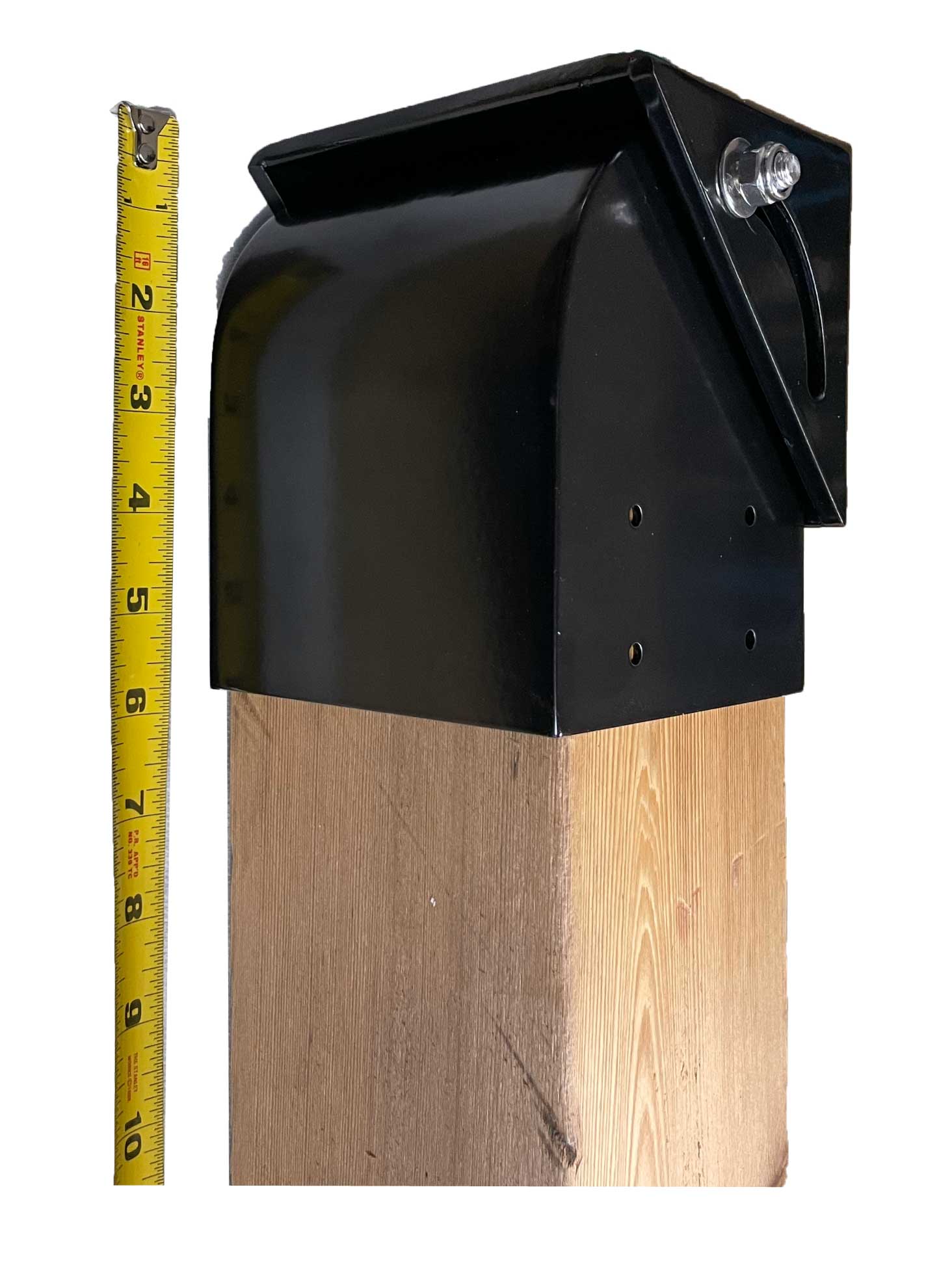

An improved light weight version of the shoring cap widely used throughout NATO. The SRC-4X4SC shoring caps were specifically designed to fit snuggly over 4 inch x 4 inch fire-retardant treated wooden shoring material, NSN 5510-00-663-4693. The shoring caps eliminate the lengthy time needed to calculate and layout the various angles on wooden shoring commonly used in K-Type shoring scenarios. Critical time is saved by eliminating several cuts needed with the traditional layout of K-Type shoring. Correctly cutting the complex angles on shoring is critical to proper alignment of the shoring and even distribution of the weight load to reinforce the shipboard structures and from preventing further damage. Eliminating several complex angled cuts also reduces the risk of injury to hands while using the aggressive shark tooth saw to cut the wooden shoring. Simply determine the required length of the shore, make a single 90° angle cut, slip the shoring cap over the shore and place in the desired shoring position. Utilize wooden wedges in pairs to tighten up the shores with shoring caps as is in any shoring evolution. The caps are designed with holes to allow securing of the shoring caps on the wooden shoring with the nails provided from the shoring kit. The shoring cap is a self-contained unit, which does not require the use of tools and is the smarter choice when erecting temporary structural support.
Product Features:
- P/N: SRC-4X4SC
- 2 Caps per set
- Fully self-contained
- Manufactured from high carbon steel machine stamped, laser cut and machine welded
- Light weight and compact
- Flat powder-coated surface providing high corrosion protection
- Fast and easy to install reduces the number of cuts from 5 to 1
- Eliminates laying out angles with shoring squares up to 10 times faster than cutting complex angles
- Robust and extremely durable
- Stainless steel retaining pin
- Weight Load max 12,000 lbs
- Weight per cap 3 pounds
All Slate River Corporation products are available for bulk purchasing. Our policy is to provide the best product possible for the least expensive price with the best possible service. In general, purchasing a single item is the most expensive way to purchase these products. Prior to ordering, please review your requirements to determine if purchasing in bulk may be more cost-effective. Volume discounts are available for multiple purchases of the same items.
